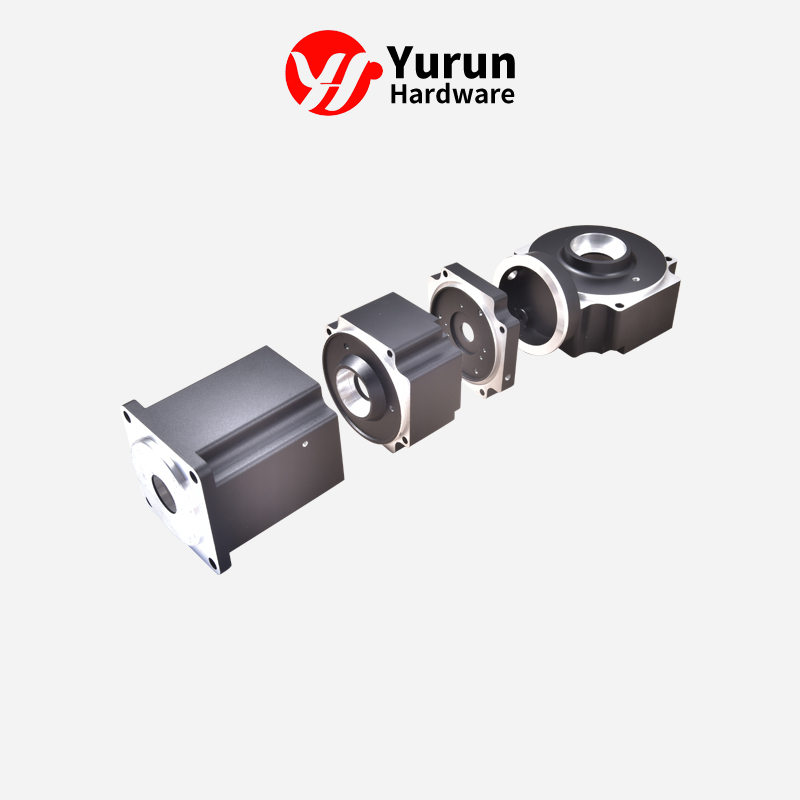

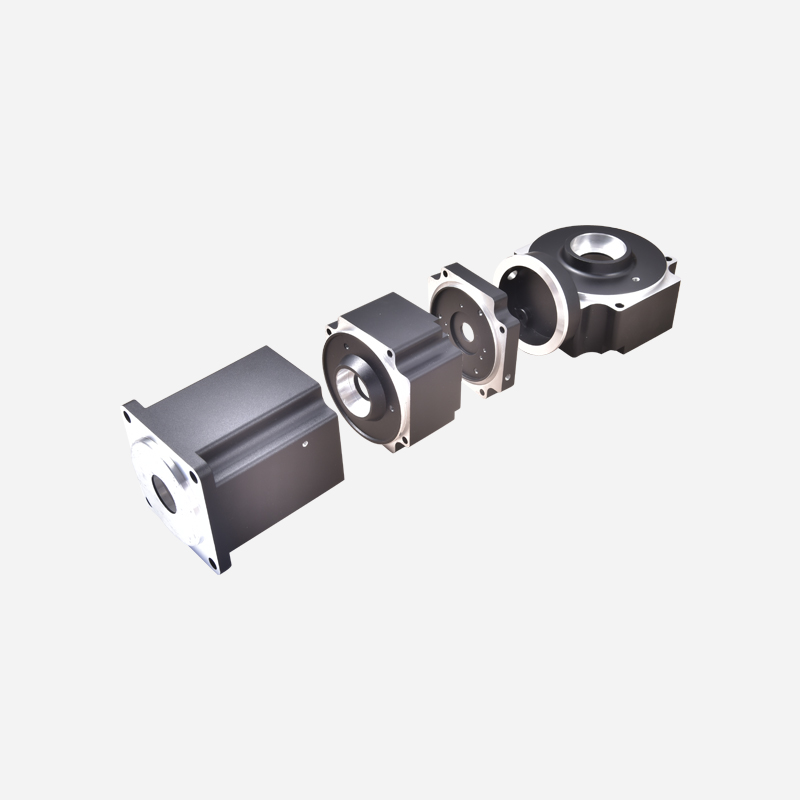

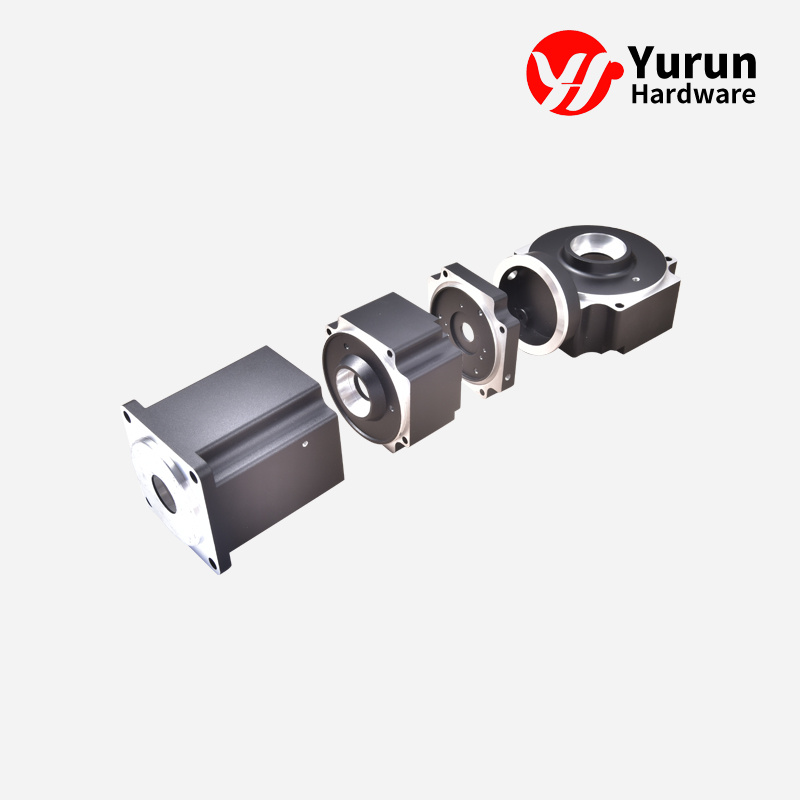

Aluminum Alloy Die Cast Motor Motor Housing

(1) Die casting mold design: Aluminum Alloy Die Casting process requirements made of casting shape and size in line with industry standards (GB/T1804-2000), so the design of the mold is the first step. Design mold according to customer workpiece requirements, use scenario consideration; Through computer 3D software simulation assembly, to ensure that the mold structure and size can meet the requirements.

(2) Mold making: After the completion of the mold design, according to the design drawing for mold making, the general mold work accuracy requirements are high, once the deviation will seriously affect the casting. In the process of mold making, the copper male uses coordinate detection to ensure the size of the workpiece. Mold processing process has strict process requirements, clear workpiece tolerance quality requirements. Before production, it is necessary to process planning (mold flow calculation) and production requirements to match parameters, and the necessary quantitative management measures are prerequisites to ensure the stability of the dimensional accuracy of the aluminum alloy parts into the mold.

(3) Assembly mold and adjustment parameters: The good mold needs to be installed on the matching die casting machine for die casting, and then the parameters of the equipment are adjusted, which can ensure the highest accuracy of the aluminum alloy parts completed in the die casting process.

(4) Die casting commissioning: After the equipment adjustment, aluminum alloy die casting process. After the aluminum alloy is heated to liquid, it is injected into the mold and left for a period of time to cool the metal quickly. The faster the cooling rate, the better the forming effect. After the die casting is completed, the product is removed from the mold and impurities such as gates and burrs that may remain around the casting are removed.

(5) Machining: to meet the increase of slag bag, drainage structure, processing allowance, drawing Angle, size correction, to ensure that the size meets the requirements of the workpiece, synchronous assembly test.

(6) Grinding and polishing/spraying: the surface of the workpiece is polished and polished to reduce the surface roughness, obtain a bright and smooth surface, and then spray treatment, for product appearance and reliability test.

(7) Inspection: Inspection of aluminum alloy die-casting parts, including dimensional accuracy, appearance quality, defects and so on. After passing the inspection, you can determine whether the aluminum alloy die casting is qualified. Qualified products are finally packed according to the requirements.
